Disruption of cell wall fatty acid biosynthesis in Mycobacterium tuberculosis using a graph theoretic approach

Theoretical Biology and Medical Modelling20118:5

DOI: 10.1186/1742-4682-8-5

Received: 6 January 2011

Accepted: 31 March 2011

Published: 31 March 2011

Abstract

Fatty acid biosynthesis of Mycobacterium tuberculosis was analyzed using graph theory and influential (impacting) proteins were identified. The graphs (digraphs) representing this biological network provide information concerning the connectivity of each protein or metabolite in a given pathway, providing an insight into the importance of various components in the pathway, and this can be quantitatively analyzed. Using a graph theoretic algorithm, the most influential set of proteins (sets of {1, 2, 3}, etc.), which when eliminated could cause a significant impact on the biosynthetic pathway, were identified. This set of proteins could serve as drug targets. In the present study, the metabolic network of Mycobacterium tuberculosis was constructed and the fatty acid biosynthesis pathway was analyzed for potential drug targeting. The metabolic network was constructed using the KEGG LIGAND database and subjected to graph theoretical analysis. The nearness index of a protein was used to determine the influence of the said protein on other components in the network, allowing the proteins in a pathway to be ordered according to their nearness indices. A method for identifying the most strategic nodes to target for disrupting the metabolic networks is proposed, aiding the development of new drugs to combat this deadly disease.

Background

The complete genome sequence of the best-characterized strain of Mycobacterium tuberculosis, H37Rv, has been determined and analyzed, improving understanding of the biology of this slow-growing pathogen and aiding the development of new prophylactic and therapeutic interventions [1]. The genome information concerning the H37Rv strain was used in this study.

Graph representation of the entire metabolism of the bacterium demonstrates the various clusters of proteins and their connectivity [2]. Furthermore, analyzing a well-connected cluster of proteins linked to several pathways enables the specific pathway concerned with mycolic acid synthesis to be targeted [3]. The bacterium possesses a thick layer of lipid on the outer surface that protects it from noxious chemicals and the host's immune system [3]; these lipids are also present in the Corynebacterium-Mycobacterium-Nocardia group. They give rise to important characteristics including resistance to chemical injury and dehydration, low permeability to antibiotics, virulence, acid-fast staining and the ability to persist within a host. Mycolic acids are the major constituents of this protective layer [4] and they play important roles as structural components of the cell wall and envelope [5]. In particular, the cyclopropane rings of mycolic acids in M. tuberculosis contribute to the structural integrity of the cell wall complex and protect the bacillus from oxidative stress (hydrogen peroxide) [3]. The lack of drug compliance, the appearance of multi-drug-resistant strains and the AIDS epidemic are factors that have led to a resurgence of tuberculosis infection. Drug resistance follows inadequate compliance, and AIDS patients with a weakened immune system are very susceptible to M. tuberculosis and it is a common cause of death [3].

Various graph theory approaches have been used to analyze metabolism in bacteria. In the present study, construction of a metabolome-based reaction network of Mycobacterium tuberculosis was attempted using the KEGG LIGAND database, and graph spectral analysis of the network was carried out to identify hubs and the sub-clustering of reactions. Another approach used for drug targeting was the identification of the 'load points' and 'choke points' in metabolic networks (graphs representing metabolism). In order to identify potential drug targets (based on the biochemical lethality of metabolic networks), the concept of choke points and load points was used to identify enzymes (edges) that uniquely consume or produce a particular metabolite (node) [6]. Complete genome sequences describe the range of metabolic reactions possible for an organism, but they cannot quantitatively describe the behavior of these reactions. In this study, a novel method for modeling metabolic states using whole cell measurements of gene expression is presented. The method, called E-Flux (a combination of Flux and Expression), extends the technique of Flux Balance Analysis by modeling maximum flux constraints as a function of measured gene expression [7].

Methods

A Graph Theoretic Approach

An ordered pair G = (V, E), where V is a non-empty set whose elements are called vertices (nodes or points), and E is a set of two distinct elements that are a subset of V, whose elements are called edges (links or lines) [8]. Furthermore, a graph G is said to be finite if V is finite, otherwise it is termed infinite. Two vertices, u and v, are said to be adjacent in G if u and v are joined by an edge, otherwise they are non-adjacent. An edge e and a vertex u are said to be incident if u is one of the end vertices of the edge e. Two edges, e1 and e2, are said to be adjacent if both have the same end vertices. The cardinality of V is denoted by |V| = p: = number of vertices in V, is called the order of the graph G. Similarly, the cardinality of E i.e. |E| = q is called the size of G. The graph can be represented using diagrams and matrices. On the basis of adjacency and incidence relationships among edges and vertices, adjacency and incidence matrices can be determined [8].

The adjacency matrix of a graph G, with vertex set V = {v1,v2,...,vp}, is denoted A(G) = [ai,j]p × p, where ai,j = 1 if there is an edge between vi to vj and 0 otherwise. It is a binary (0, 1) - square symmetric matrix. The incidence matrix of a graph G is denoted I (G) = [bi, j] p × q, where bi, j = 1 if ei is incident to vi, and 0 otherwise. A graph H = (V1, E1) is said to be a sub-graph of the graph G = (V, E) if V1 is a subset of V and E1 is a subset of E. When V1 = V then the sub-graph H is termed a spanning sub-graph of G. A directed graph (digraph in short) D is an ordered pair D = (V, A), where V is known as a vertex set of D and A is an ordered pair of two distinct elements of V, known as an arc set of D. The order and size of a digraph D is the number of vertices and arcs in D, respectively. In a digraph, if there is an arc a = (u, v), then u is the initial vertex and v is the terminal vertex of the arc a. A graph G is said to be connected if one vertex can be reached from another vertex by a path (alternating sequence of vertices and edges, i.e. u = u0, e0, u1, e1, u2,..., un-1, en-1, un = v), otherwise it is considered to be disconnected.

A digraph is said to be strongly connected if a vertex of D can be reached from other vertices of D by a directed path. A digraph D is said to be weakly connected if its underlying graph (undirected graph) is connected. Deletion of a vertex v from the digraph D (graph G) refers to the removal of a vertex v from V and all arcs (edges) for which v is either the initial vertex or the terminal vertex of an arc in D. Deletion of an arc (edge) from a digraph (graph) refers to the removal of the arc (edge) from the digraph (graph). If S is a subset of the vertex set V of the digraph (graph), then D - S is the digraph (graph) obtained by removing vertices of S and arcs (edges) for which one of the end vertices are in S from the D. If there are more than two connected components, then S is referred to as the separating set of D. Let [S, V-S] = {(u,v): u ε S and v ε V-S}; if all arcs (edges) of [S, V-S] are removed from the digraph (graph) and the resultant digraph (graph) is not connected, then [S, V-S] is termed an edge-cut of D.

The mycolic acid network [9] was modeled using a digraph (Figure 1) in which vertices represent the metabolites and reactions/interactions between any two metabolites are represented by arcs (Figure 2). Let D = (V, A) be the digraph with vertex set V = {v1, v2, v3, ..., v49} and there are four other metabolic cycles connected to the vertices v1, v10 and v40 of the digraph D and arc set A = {e1, e2, e3,...,e80}. By selecting the vertices with maximum out-degree (i.e. number of arcs radiating from the vertex) first, a set S = {v11, v10, v39, v15, v19, v24, v29, v34, v46} can be generated in D. Deleting this set S from the digraph D refers to deleting all the vertices of S from D and arcs that have one end vertex in S. Let D* = (V*, A*) be the resultant digraph obtained, where V* = V-S and A* is the set of all arcs remaining in A, which has more than four components in D*, a disconnected digraph.
https://static-content.springer.com/image/art%3A10.1186%2F1742-4682-8-5/MediaObjects/12976_2011_Article_280_Fig1_HTML.jpg
Figure 1

Fatty acid Biosynthesis (Source KEGG pathway database). Fatty Acid Synthesis Pathway in Mycobacterium tuberculosis H37rv. The pathway was downloaded from the KEGG Database. Starting from Acetyl-CoA at the bottom left of the figure, the metabolites are numbered left to right and then bottom to top.

https://static-content.springer.com/image/art%3A10.1186%2F1742-4682-8-5/MediaObjects/12976_2011_Article_280_Fig2_HTML.jpg

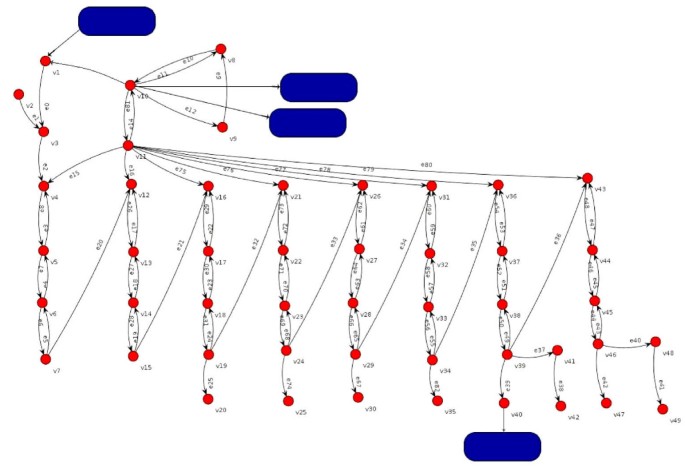

Figure 2

Fatty acid Biosynthesis modeled using Graph. (Vertex v3 corresponds to Acetyl-[acp], Vertex v10 corresponds to Malonyl-CoA and Vertex v11 corresponds to Malonyl-[acp]). Blue boxes correspond to other pathways.

Determination of nearness index

The nearness index for a vertex (protein) is the sum of all the inverses of the minimum path lengths to every other vertex in the graph [2]. For a particular vertex v i , the eccentricity of vi is the length of the path from the farthest vertex in the graph and would contribute least to the nearness index of v i because the inverse of the path length is added equivalently; vertices with more eccentricity have a lower nearness index. If the degree of vertex v i (ith vertex of given graph G) is denoted by d i , then the nearness index of v i is given by:
https://static-content.springer.com/image/art%3A10.1186%2F1742-4682-8-5/MediaObjects/12976_2011_Article_280_Equa_HTML.gif

The data were parsed using a java program that uses the list of minimum path lengths (obtained from visANT) as the input.

Results

Data for assessing the pathway are available in the KEGG (Kyoto Encyclopedia of Genes and Genomes) pathway database and were used to obtain a flowchart of the fatty acid biosynthesis pathway of Mycobacterium tuberculosis H37Rv. The green squares in the flowchart (Figure 1) represent proteins identified from the genome sequence of the bacterium. The genome sequence for this bacterium is complete. Therefore, the information concerning the participating proteins is also complete [10].

The proteins involved in the mycolic acid biosynthesis pathway [9] were inputted into visANT software [11]. This free software can be used to identify interactions between proteins and the result is displayed as a graph. visANT can be downloaded from http://visant.bu.edu/. Programming for assessing the results was carried out using java (version 1.6.0_01). NetBeans IDE 6.9.1 was the IDE (Integrated Development Environment) used [12]. The name of the organism was selected and the list of proteins entered in the input area provided. Clicking the search button provides the interactions among the proteins given as the input. A graph is obtained and when the layout "spring embedded" is selected, the following is produced: Figure 3.
https://static-content.springer.com/image/art%3A10.1186%2F1742-4682-8-5/MediaObjects/12976_2011_Article_280_Fig3_HTML.jpg
Figure 3

Protein interaction network. Nodes have been colour coded and proteins which are closer are clustered together.

visANT represents proteins as vertices and the interactions between them as edges. Therefore, an undirected graph of the interactions of proteins involved in the fatty acid biosynthesis pathway is obtained. The graph is not directed as demonstrated in Figure 4.
https://static-content.springer.com/image/art%3A10.1186%2F1742-4682-8-5/MediaObjects/12976_2011_Article_280_Fig4_HTML.jpg
Figure 4

Protein network demonstrating dense inter-connectivity. visANT possesses a tool to identify the shortest paths between all the pairs of vertices in a graph. Selecting all the vertices of this small graph identifies the shortest paths. The shortest paths are given in the following format:

This result as shown in Figure 5. can be stored in a text file and parsed to obtain the path distance (starting protein and the ending protein). For example, for the line Shortest path (2)::RV1384-RV2967C-RV0263C, the shortest path from protein RV1384 to protein RV0263C, is of length 2. This datum can be used to obtain the degree of each vertex. Therefore, when all the degrees have been determined, the amount of influence a protein possesses, using the concept of nearness index, can be calculated.
https://static-content.springer.com/image/art%3A10.1186%2F1742-4682-8-5/MediaObjects/12976_2011_Article_280_Fig5_HTML.jpg
Figure 5

Shortest Pathway analysis. The shortest paths between all the pairs of vertices in a graph (Source: visANT).

Nearness index

The nearest vertex (with small ecentricity) would contribute most to the nearness index. Therefore, when calculating the nearness index, all the vertices of the graph were taken into account as were their differing levels of influence. The total sum represents the influence of the protein represented by v i on the complete pathway, which is represented as a graph. Another interaction between proteins concerns one protein helping in the production of a metabolite, which is converted to another metabolite by a second protein (2). In this case, the first protein influences the second protein. The second protein relies on the first protein functioning so that it obtains the metabolites. The graph obtained from protein-protein influences of this kind will be a directed graph. Reversible reactions are represented as edges to and from the two proteins. From this, the influence of each protein can be estimated by calculating its nearness index (Table 1). The result of shortest paths obtained from visANT can be copied and stored in a file called shortpath, which is given as an argument for running the java program. A java code like that shown below was written to calculate the nearness index with the file shortpath as the input.
Table 1

Protein nearness index

Protein

N i (Nearness Index)

RV2501C

15

RV2967C

15

RV0973C

15

Rv3285

14.5

RV0263C

12

RV3280

11.5

RV2502C

11.5

RV3799C

11.5

RV0974C

11.5

RV2247

11.5

RV2888C

10

RV3375

10

RV3011C

10

RV1263

10

RV2363

10

RV1384

9

   package nearnessindex;

   import java.util.Scanner;

   import java.util.regex.*;

   import java.io.*;

   /**

   *

   * @author Veeky

   */

   public class Main {

      static double i,iT= 0;

      static String p1="",p2="", pT="", topper;

      public static void main( String[] args) {

         //calculate nearness Index!

         try{

            PrintStream out = new PrintStream(new FileOutputStream("indices"));

            System.setOut( out);

            Scanner s = new Scanner(new File( args[ 0]));

            while ( s.hasNextLine()) {

            s.findInLine("Shortest path\\((\\d+)\\)::(\\w+).*-(\\w+)");//at each line, look for this pattern

            MatchResult result = s.match();//results from

            if (( p1.equals( result.group( 2)))&&(! p2.equals( result.group( 3)))) {

               i = i + ( 1/ Double.parseDouble( result.group( 1)));

               p2 = result.group( 3);

               }

            else if (! p1.equals( result.group( 2))) {

               if (! p1.equals("")) {

                  out.println( p1 + ": " + i);

                  if ( iT< i) {

                     topper = p1;//topper is the string that would hold the proteins with highest nearness index

                     iT = i;

               }

                  else if ( iT== i) {

                     topper = topper + ", " + p1;

               }

            }

            i = ( 1/ Double.parseDouble( result.group( 1)));

            p1 = result.group( 2);

            p2 = result.group( 3);

      }

      s.nextLine();

   }

   out.println( p1 + ": " + i);

   out.println("Protein(s) with highest nearness index (" + iT + "): " + topper);

   s.close();

   out.close();

   }

   catch ( FileNotFoundException e) {

      System.out.print("cannot find file");

      }

   }

}

Computation of nearness index with Java code

In the main method of the program, a new PrintStream object was used to print to an output file called indices. A scanner object was used to read from the input file, shortpath, line by line. A while loop was used to check if shortpath was read up to the last line.

Inside the while loop, for each line a regex function (Shortest path\\((\\d+)\\)::(\\w+).*-(\\w+)) was used to identify the starting protein of the path, the ending protein and the path length. For instance, for the line Shortest path(2)::RV1384-RV2967C-RV0263C, we would obtain the result group(1) as 2, result group(2) as RV1384 and result group(3) as RV0263C. The shortest paths from each protein were calculated and according to the formula for the nearness index, the inverses of the shortest path length could be added. Redundant data concerning the various paths from one protein to another were discarded:

Shortest path(2)::RV2380C-RV2246-RV0099

Shortest path(2)::RV2380C-RV2245-RV0099

Shortest path(2)::RV2380C-RV1454C-RV0099

Shortest path(2)::RV2380C-RV0149-RV0099

Shortest path(2)::RV2380C-RV2381C-RV0099

Therefore, only one of these paths was considered as they were all considered to be the shortest.

Using visANT, the shortest path from each protein in to all the other proteins (of the form Shortest path(2)::RV1384-RV2967C-RV0263C) were obtained. This shortest path was used as an input for the java program to calculate the nearness index presented in Table 1.

The proteins in Figure 6 with the highest nearness index of 15 were RV2501C, RV2967C and RV0973C. According to computational factors (namely domain fusion, gene neighborhood and phylogenetic profiling), these were the most influential proteins in this particular sub-graph. Among these proteins, RV2501C is directly involved in the fatty acid biosynthesis.
https://static-content.springer.com/image/art%3A10.1186%2F1742-4682-8-5/MediaObjects/12976_2011_Article_280_Fig6_HTML.jpg
Figure 6

Protein networks and their interactions (Source: visANT).

For the largest sub-graph (Figure 7), the proteins with the largest nearness index of 104.4167 were RV2524C (FAS), RV2245 and RV2246. Of these proteins, FAS is directly involved in the pathway as shown in Table 2.
https://static-content.springer.com/image/art%3A10.1186%2F1742-4682-8-5/MediaObjects/12976_2011_Article_280_Fig7_HTML.jpg
Figure 7

The largest sub-graph. This graph was used to calculate the nearness index of proteins.

Table 2

Nearness Index For the largest sub-graph

Protein

N i (Nearness

Index)

Protein

N i (Nearness

Index)

Protein

N i (Nearness

Index)

RV2524C

104.4167

RV3826

75.25

RV0533C

60.85

RV2245

101.4167

RV1925

74.75

RV1108C

60.35

RV2246

100.9167

RV2941

74.75

RV3246C

59.35

RV2048C

91.25

RV0166

74.75

RV2884

59.35

RV2935

91.25

RV3801C

74.75

RV3765C

59.35

RV2934

91.25

RV1427C

74.75

RV0903C

59.35

RV2933

91.25

RV1058

74.75

RV0491

59.35

RV2932

91.25

RV3515C

74.75

RV1027C

59.35

RV2931

91.25

RV1206

74.75

RV0981

59.35

RV3825C

91.25

RV2383C

74.68333

RV0757

59.35

RV2940C

91.25

RV3561

72.25

RV0602C

59.35

RV3800C

91.25

RV1185C

71.75

RV1033C

59.35

RV1181

91.25

RV2948C

71.75

RV0818

59.35

RV0405

91.25

RV2930

71.75

RV2783C

58.68333

RV1527C

91.25

RV0035

71.75

RV2727C

58.68333

RV1664

91.25

RV2950C

71.75

RV3907C

58.18333

RV1662

91.25

RV1193

71.75

RV3105C

58.18333

RV1661

91.25

RV0404

71.75

RV1630

58.18333

RV2381C

90.75

RV1013

71.75

RV2539C

56.85

RV2048C_12

90.75

RV3667

71.68333

RV3607C

56.35

RV2946C

90.75

RV2590

71.68333

RV1409

56.35

RV2382C

89.08333

RV2505C

71.25

RV2244

54.18333

RV2947C

89.08333

RV3506

71.25

RV2214C

54.08333

RV1180

89.08333

RV1750C

71.25

RV3389C

53.08333

RV1483

87.33333

RV0542C

71.25

RV3538

53.08333

RV1663

86.18333

RV0551C

71.25

RV1938

51.75

RV3141

84.68333

RV1345

71.25

RV3617

51.75

RV3777

84.68333

RV2384

70.18333

RV0134

51.75

RV0149

84.68333

RV2380C

69.68333

ACCD3

47.33333

RV1454C

84.68333

RV0101

69.68333

RV0769

39.78333

RV1912C

84.68333

RV3513C

68.75

RV3559C

39.78333

RV2048C_11

80.18333

RV2187

68.68333

RV0242C

39.78333

RV0099

77.25

RV1550

68.68333

RV3502C

36.61667

RV0214

77.25

RV2379C

66.68333

RV1350

36.61667

RV1529

76.75

fabd

64.85

RV0768

28.93333

RV3089

76.25

RV2457C

63.85

RV0241C

28.93333

RV0270

76.25

RV3606C

63.35

RV3560C

28.93333

RV0119

76.25

RV1629

63.35



RV1521

76.25

RV1018C

60.85
